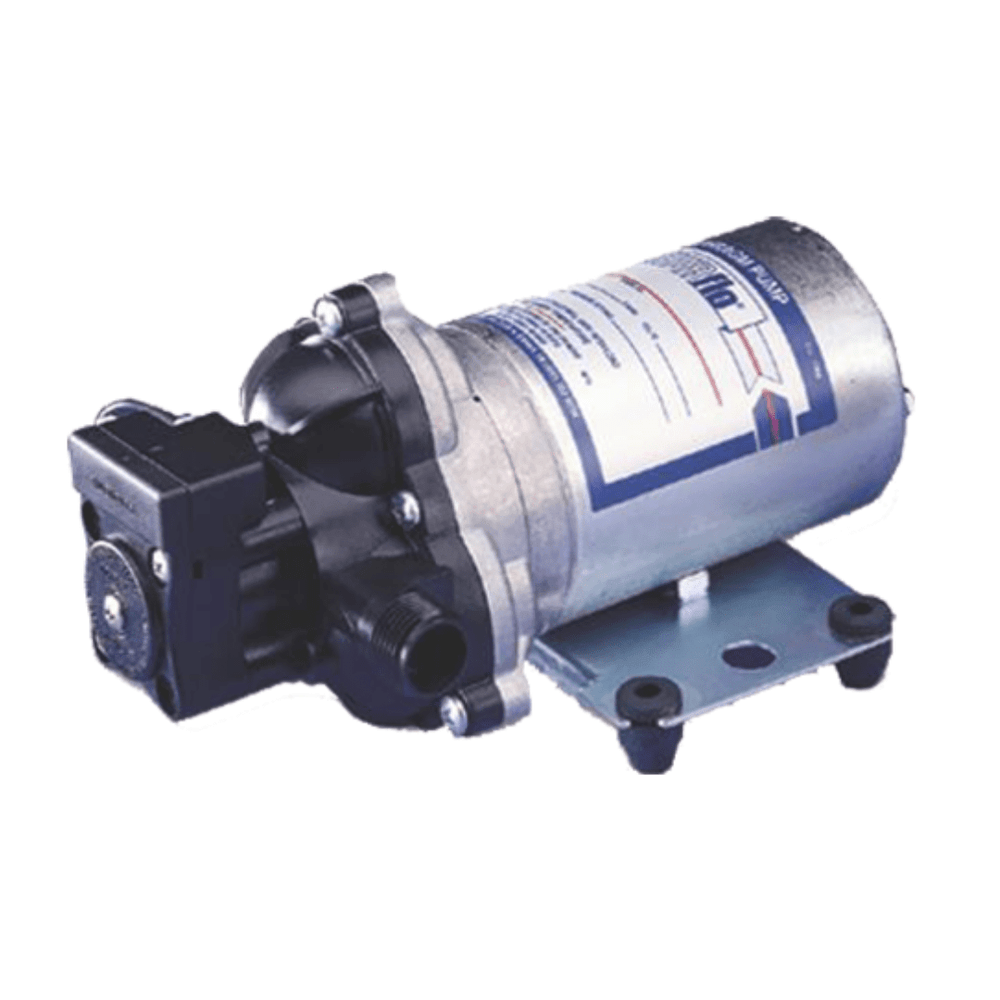

Shurflo 2088 Series Diaphragm Pumps

by Pentair
$440.00

Shurflo® 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying and transfer applications that require flows of up to 4.0 GPM [14.4 l/min]. They can be mounted in any position, and are designed for easy maintenance.

  • Self-Priming up to 12 Vertical Feet [3.7M]
  • Chemically Resistant Materials
  • Automatic Demand
  • Built-In Check Valve (May Vary by Model) to Prevent Back Flow of Fluid
  • Supported for agriculture

Variant: 2088-313-145

  • Voltage: 12VDC
  • Control Pressure: 45 PSI
  • Open Flow GPM: 3.6 GPM
  • Control Type: Sealed
  • AMPS (MAX): 6
  • Ports: 1/2"-14 NPSM
  • Housing Material: Polypropylene
  • Valve Material: Viton
  • Diaphragm Material: Santoprene

Variant: 2088-313-145

  • Voltage: 12VDC
  • Control Pressure: 45 PSI
  • Open Flow GPM: 3.0 GPM
  • Control Type: None
  • AMPS (MAX): 5
  • Ports: 1/2"-14 NPSM
  • Housing Material: Polypropylene
  • Valve Material: Viton
  • Diaphragm Material: Santoprene

Source: 2088 Series
